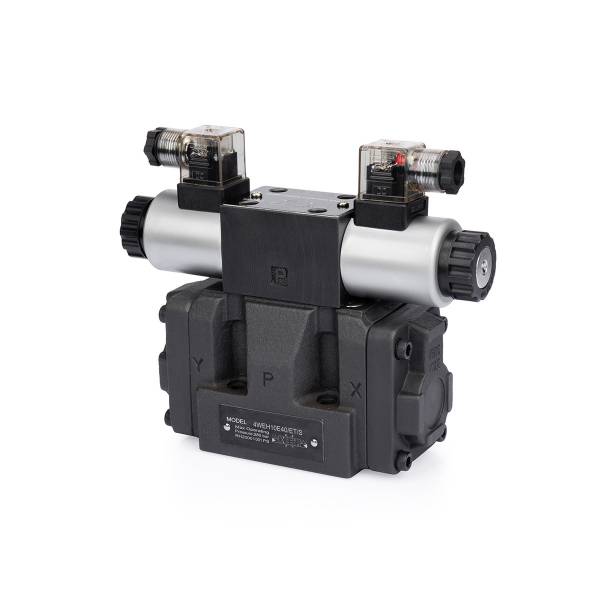

EThan 4WEH valve is a 4/3 directional control valve that operates electro-hydraulically. It is a pilot-operated spool valve that controls the start, stop and direction of a volume flow
— For subplate mounting
— Wet-pin DC or AC solenoids,optional
— With or without fault detection button
— Electrical connection as individual or central connection
— Spring or pressure centring,spring end position or hydraulic end position
— Pilot throttling regulator
— Stroke limit of main control spool
— On port P of the main valve,there is a pilot pressure insert
— When the control pressure exceeds 25 Mpa,the regulator reduces the pilot pressure
— Cartridge orifie reduces oil supply to pilot valve
Related applications
Dump truck
A dump truck is commonly used to transport heavy materials such as construction waste, excavation waste, sand, gravel, etc. It generally consists of a vehicle chassis, wheels, axles, engine, transmission, dump body, and dump body lifting device …
Small hydraulic systems
A CNC machine tool is a high-precision machining equipment using computer numeric control technology. It can automatically complete various machining operations such as cutting, drilling, milling, grinding, tapping, etc …
E9017.2,2022 English 4WEH electro-hydraulic valves -Ethan.pdf
